Beibei Voice's brand "徵歌zhige" focuses on the research and development, production, sales, and brand OEM of MC/MM cartridge, and is a professional integrated company of research, production, and sales

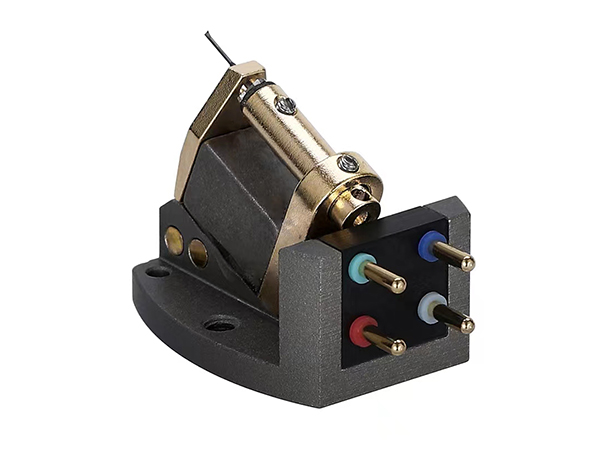

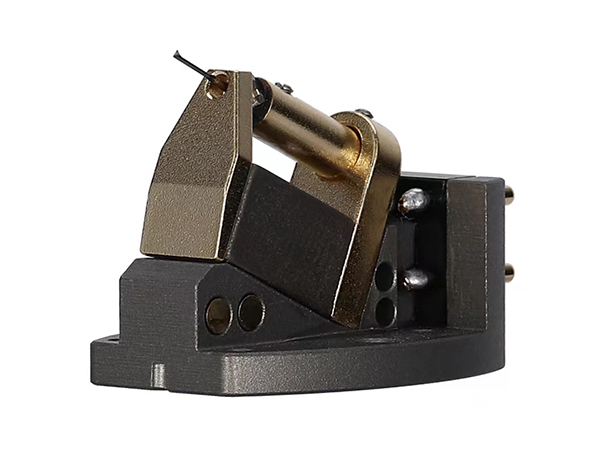

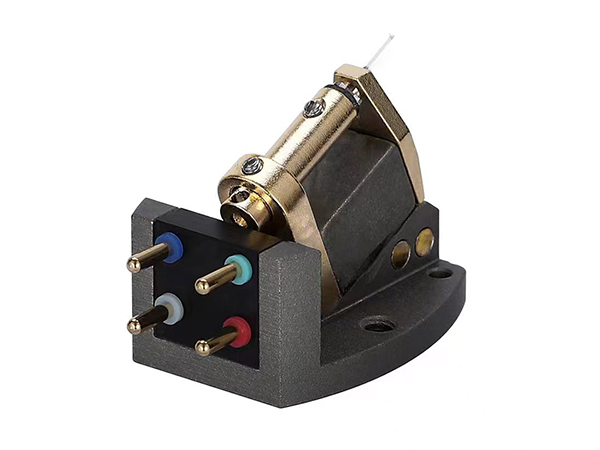

| Type | MC Stereo | MC Stereo | MC Stereo | MC Stereo | |
| Model | ZG-MC700A | ZG-MC700B | ZG-MC700C | ZG-MC700H | |
| Nickname | lark百灵 | ||||
| Structure | Material of body | AL7075 | AL7075 | AL7075 | AL7075 |
| Stylus | Shibata Ⅲ | Shibata Ⅲ | Microridge stylus | Microridge stylus | |
| Cantilever | Sapphire | Sapphire | Boron | Boron | |
| Height (mm) | 18.8 | 18.8 | 18.8 | 18.8 | |
| Weight (g) | 9.5 | 9.5 | 9.5 | 9.5 | |
| Core Shape | square | square | square | square | |
| Magnet | samarium-cobalt | samarium-cobalt | samarium-cobalt | samarium-cobalt | |
| Wire type | 6NOCC/5N Silver | 6NOCC/5N Silver | 6NOCC | 6NOCC | |
| Electrical properties | Output level |
0.3mV (1KHz, 5cm/s) |
0.6mV (1KHz, 5cm/s) |
0.72mV (1KHz, 5cm/s) |
0.9mV (1KHz, 5cm/s) |
| DC Resistance | 2Ω | 4Ω | 12Ω | 22Ω | |
| Frequency response | 15-45KHz ±1dB | 15-45KHz ±1dB | 15-45KHz ±1dB | 15-45KHz ±1dB | |
| Channel separation | >34dB | >34dB | >34dB | >34dB | |
| Channel balance | <0.5dB | <0.5dB | <0.5dB | <0.5dB | |
| Application parameters | Compliance(dynamic 10Hz) | 14μm/mN | 14μm/mN | 14μm/mN | 14μm/mN |
| Recommended tracking force | 1.8g | 1.8g | 1.8g | 1.8g | |
| Tracking force range | 1.7-2.3g | 1.7-2.3g | 1.7-2.3g | 1.7-2.3g | |
| Run-in period | 30h | 30h | 30h | 30h | |
