Beibei Voice's brand "徵歌zhige" focuses on the research and development, production, sales, and brand OEM of MC/MM cartridge, and is a professional integrated company of research, production, and sales
| Type | MC Stereo | MC Stereo | MC Stereo | MC Stereo | MC MONO | |

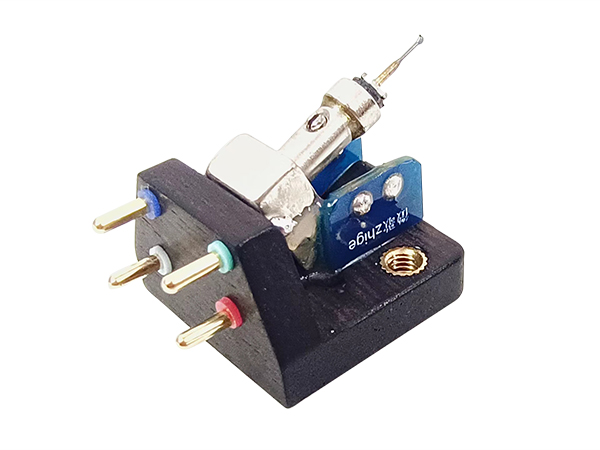

| Model | ZG-MC301 | ZG-MC301L | ZG-MC301H | ZG-MC301S | ZG-MC301 MONO | |
| Nickname | nightingale 夜莺 | |||||
| Structure | Material of body | Ebony | Ebony | Ebony | Ebony | Ebony |
| Stylus | Line Contact | Line Contact | Line Contact | Line Contact | Super Elliptic | |
| Cantilever | Boron | Boron | Boron | Boron | Aluminum | |
| Height (mm) | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | |
| Weight (g) | 7 | 7 | 7 | 7 | 7 | |
| Core Shape | cross | cross | cross | square | square | |
| Magnet | NdFeB | NdFeB | NdFeB | NdFeB | NdFeB | |
| Wire type | 6NOCC | 6NOCC | 6NOCC | 5N Silver | 6NOCC | |
| Electrical properties | Output level |
0.3mV (1KHz, 5cm/s) |
0.4mV (1KHz, 5cm/s) |
0.6mV (1KHz, 5cm/s) |
0.4mV (1KHz, 5cm/s) |
0.5mV (1KHz, 5cm/s) |
| DC Resistance | 20Ω | 10Ω | 20Ω | 7Ω | 12Ω | |
| Frequency response | 15-30KHz ±1dB | 15-30KHz ±1dB | 15-30KHz ±1dB | 15-30KHz ±1dB | 15-30KHz ±1dB | |
| Channel separation | >32dB | >32dB | >32dB | >32dB | ||
| Channel balance | <0.5dB | <0.5dB | <0.5dB | <0.5dB | <0.5dB | |
| Application parameters | Compliance(dynamic 10Hz) | 15μm/mN | 15μm/mN | 15μm/mN | 15μm/mN | 15μm/mN |
| Recommended tracking force | 1.8g | 1.8g | 1.8g | 1.8g | 1.8g | |
| Tracking force range | 1.7-2.2g | 1.7-2.2g | 1.7-2.2g | 1.7-2.2g | 1.7-2.2g | |
| Run-in period | 30h | 30h | 30h | 30h | 30h | |
