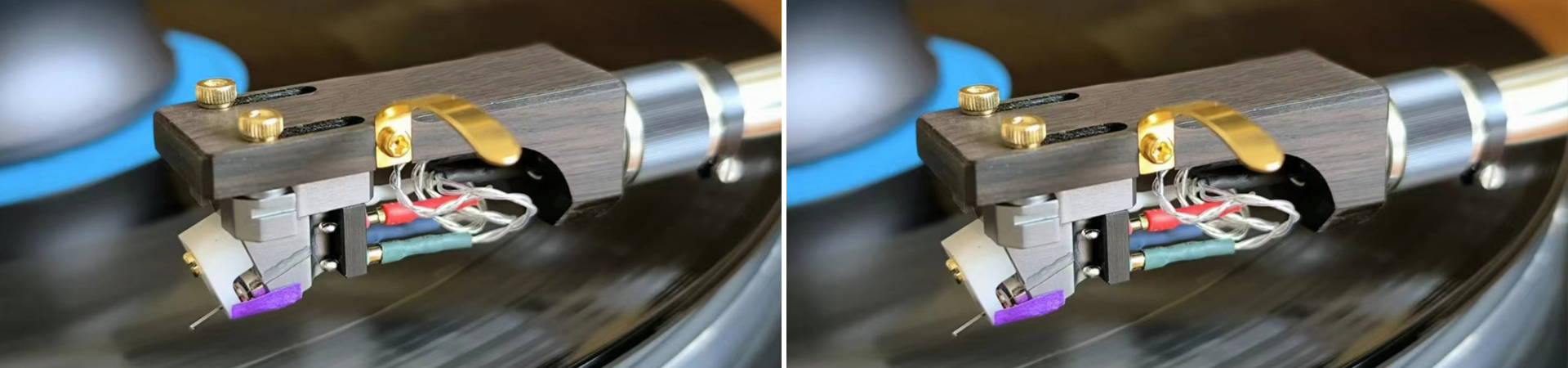

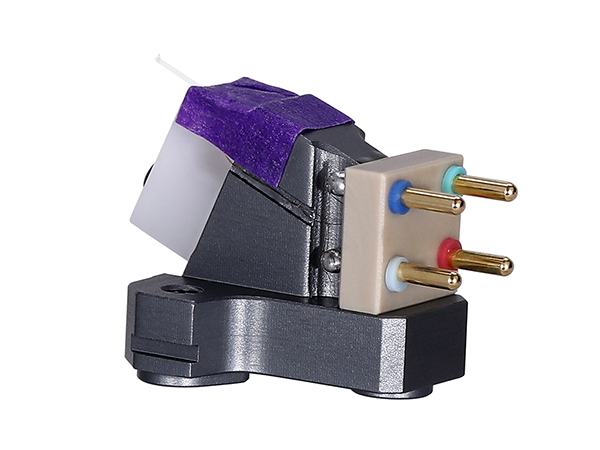

MC cartridge ZG-MC600 thrush The body of the (thrush) is made of solid 7075 aviation aluminum alloy and processed as a whole, eliminating the need for the front and rear pole coils to be directly fixed to magnets, achieving more accurate audio reproduction and purer and clearer sound performance. The singing head adopts a more high-end sapphire rod as the cantilever of the stylus and Shibata diamond needle tip.
The characteristics of the cartridge include high resolution, balanced frequency response, high dynamics, high density, luxurious sound, richer sound details, pure and clear sound performance, and more accurate audio reproduction. It is a cost-effective and high-performance cartridge.

Type		MC Stereo	MC Stereo
Model		ZG-MC600	ZG-MC600A
Nickname		thrush 画眉
Structure	Material of body	AL7075	AL7075
	Stylus	Shibata Ⅲ	Shibata Ⅲ
	Cantilever	Sapphire	Sapphire
	Height (mm)	18.5	18.5
	Weight (g)	6	6
	Core Shape	cross	cross
	Magnet	NdFeB	NdFeB
	Wire type	6NOCC	6NOCC
Electrical properties	Output level	0.36mV (1KHz, 5cm/s)	0.35mV (1KHz, 5cm/s)
	DC Resistance	10Ω	5Ω
	Frequency response	15-40KHz ±1dB	15-40KHz ±1dB
	Channel separation	>33dB	>33dB
	Channel balance	<0.5dB	<0.5dB
Application parameters	Compliance(dynamic 10Hz)	16μm/mN	16μm/mN
	Recommended tracking force	1.7g	1.7g
	Tracking force range	1.7-2.3g	1.7-2.3g
	Run-in period	30h	30h
