Beibei Voice's brand "徵歌zhige" focuses on the research and development, production, sales, and brand OEM of MC/MM cartridge, and is a professional integrated company of research, production, and sales
| structure | Type | MC Stereo | MC MONO |

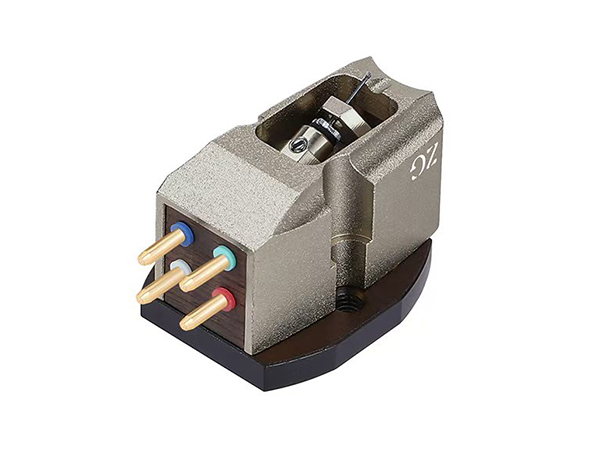

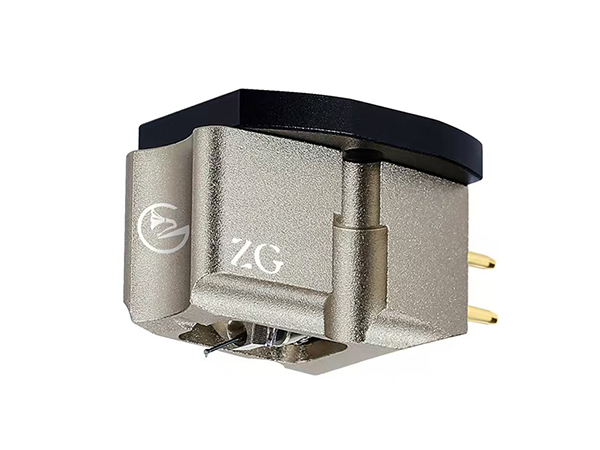

| Model | ZG-506 | ZG-506S | |
| Material of body | AL6063 | AL6063 | |
| color | Original titanium color | Original titanium color | |
| Stylus | Graver Stylus | Graver Stylus | |
| Cantilever | (Boron | (Boron | |
| Height (mm) | 18.5 mm | 18.5 mm | |
| Weight (g) | 11g | 11g | |
| Wire type | 6NOCC | 5N Silver | |
| Electrical properties | Output level | 0.45 mV(1KHz,5cm/s) | 0.4 mV(1KHz,5cm/s) |
| DC Resistance | 5Ω | 4Ω | |
| Frequency response | 15-35KHz +1dB | 15-35KHz +1dB | |
| Channel separation | >32dB | >32dB | |
| Channel balance | <0.5dB | <0.5dB | |
| Application parameters | Compliance(dynamic 10Hz) | 14μm/mN | 14μm/mN |
| Recommended tracking force | 1.7g | 1.7g | |
| Tracking force range | 1.5-2.2g | 1.5-2.2g | |
| Run-in period | 30h | 30h |
