Beibei Voice's brand "徵歌zhige" focuses on the research and development, production, sales, and brand OEM of MC/MM cartridge, and is a professional integrated company of research, production, and sales
| structure | Type | MC Stereo | MC Stereo |

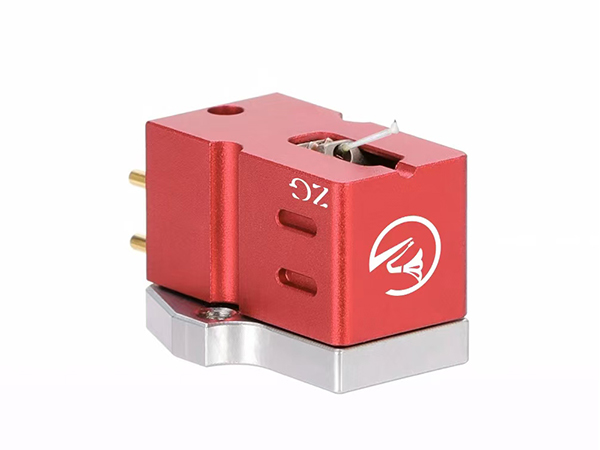

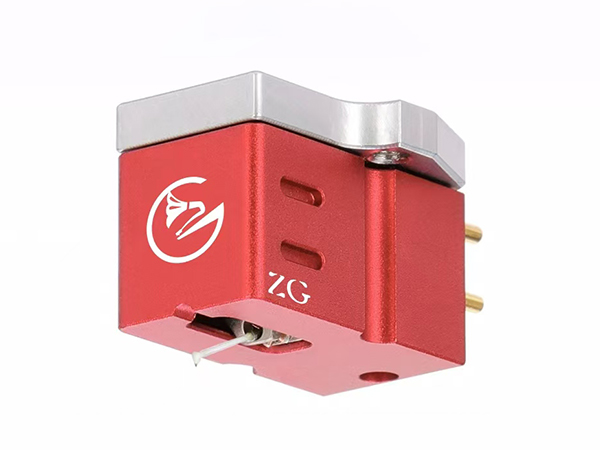

| Model | ZG-TC106 | ZG-L106 | |
| color | Red/Gold | Red/Gold | |
| Stylus | Super Elliptic | Elliptic | |
| Cantilever | ceramics | luminum | |
| Height (mm) | 16.5 | 16.5 | |
| Weight (g) | 6.5 | 6.5 | |
| Wire type | 5NOCC | 5NOCC | |
| Electrical properties | Output level | 0.55 mV(1KHz,5cm/s) | 0.55 mV(1KHz,5cm/s) |
| DC Resistance | 10Ω | 10Ω | |
| Frequency response | 15-30KHz ±1dB | 15-30KHz ±1dB | |
| Channel separation | >29dB | >28dB | |
| Channel balance | <0.5dB | <0.5dB | |
| Application parameters | Compliance(dynamic 10Hz) | 16μm/mN | 16μm/mN |
| Recommended tracking force | 1.8g | 1.8g | |
| Tracking force range | 1.5-2.3g | 1.5-2.3g | |
| Run-in period | 30h | 30h |
